10 inch Line Array \Church Sound Speaker \Black Cabinet Club With Truss Sound \Passive Hang Line Array

Ask Lasest Price
Brand Name :	CVR
Model Number :	W-110 & W-118P
Certification :	CE,RoHS
Price :	Negotiation
Payment Terms :	D/A, D/P, L/C, Western Union
Supply Ability :	1000 Pieces Per Month
Delivery Time :	5--8 Work Days

Add to Cart

Product Details
Company Profile

10 inch Line Array \Church Sound Speaker \Black Cabinet Club With Truss Sound \Passive Hang Line Array

10 inch Line Array Active Sound System Neodymium Woofers For Outdoor Show

DESCRIPTION and APPLICATION:

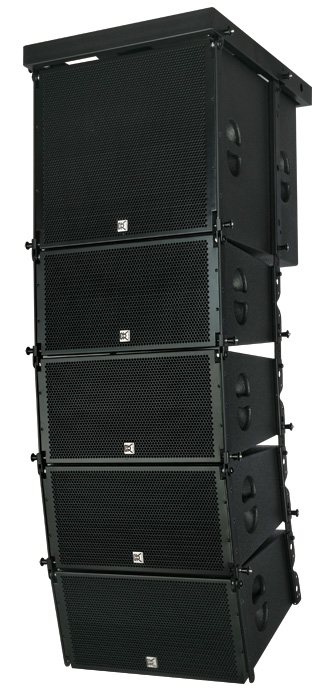

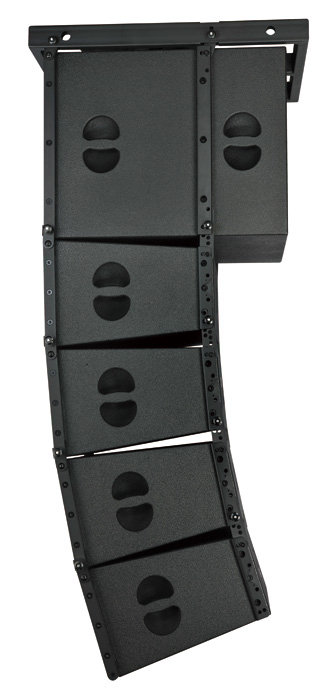

W-110 is a line array system which is made of one 10” neodymium woofers, two 1.75” titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. Wherever low frequency extension is required, a W-110 will integrate seamlessly with W-118 or W-118P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-110 is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
W-118/W-118P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-110, W-118/W-118P is a sub-bass enclosure which must be flown with W-110. Its physical dimensions are identical to the W-110 and it is equipped with the same proprietary rigging system. It features with a 18” neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion. The W-118P with Bluetooth features a highly efficient power amp module and incorporated DSP.

Model	W-110 ＆ W-118/W-118P(Active)
Type	Line array system
Type	line array sub-bass system(W-118/W-118P)
Frequency Response	65Hz-20KHz±3dB
Frequency Response	35Hz-500Hz±3dB(W-118/W-118P)
Power handling	LF 400W(RMS)800W(PEAK) HF 120W(RMS)240W(PEAK)
Power handling	800W(RMS)1600W(PEAK)(W-118/W-118P)
Power amp	2X600W/4ohm + 1X900W/8ohm (W-118P)
Amplifier type	Switching power amp, class D circuit
Other functions	Bluetooth,DSP (W-118P)
Sensitivity	LF 96dB(1W@1M) HF 108dB(1W@1M)
Sensitivity	109dB(1W@1M)(W-118/W-118P)
Max@S.P.L	LF 122dB(PEAK/1M) HF 125dB(PEAK/1M)
Max@S.P.L	135dB(PEAK/1M)(W-118/W-118P)
LF section	1×10"(260mm) neodymium woofer 75mm(3in)coil
LF section	1×18"(460mm)woofer 100mm(4in)coil (W-118/W-118P)
Nominal impedance	8 ohm/8 ohm (W-118/W-118P)
HF section	2×1.75"compression driver with44mm titanium diaphragm
Nominal impedance	16 ohm
Output section	2-channel
Dispersion pattern	110º H×9º V
Surface finish	Black paint
Array design	Arrays of less than 3×W-110 will provide poor dispersion control and are neither recommended nor supported
Speaker cables	LF1(+)1(-) HF 2(+)2(-)
Speaker cables	1(+)1(-) (W-118P)
Rigging system	Please refer to the W-110 user's manual before any operation
Input connectors	2×NL4MP speakon
Recommend crossover	LF 70Hz-2KHz HF 2KHz-20KHz
Recommend crossover	35Hz-120Hz(W-118P)
Dimensions	522×595×450mm(W×H×D)
Dimensions	522×510×650mm(W×H×D) (W-118/ W-118P)
Package dimensions	592×665×520mm/0.15cbm
Package dimensions	592×735×720mm/0.39cbm (W-118/ W-118P)
Enclosure	Birch Plywood
Net weight	21kg(W-110)/40kg(W-118)/46kg(W-118P)
Gross weight	23kg(W-110)/43kg(W-118)/49kg(W-118P)

10 inch Line Array Church Sound Speaker Black Cabinet Club With Truss Sound Passive Hang Line Array

CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !

Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.

Brand Promises:

To get the best goods with least money is not only customers favorites,but also CVR's target.

Quality Wood Enlosure: Birch Plywood and Plywood.
Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
CE&RoHS certificate: for all products
Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
Strong packing: Quality carton boxs with firm belt and flight cases are required.
Fast lead time: Sample order in stock and normally within two weeks for bulk production.
Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.
