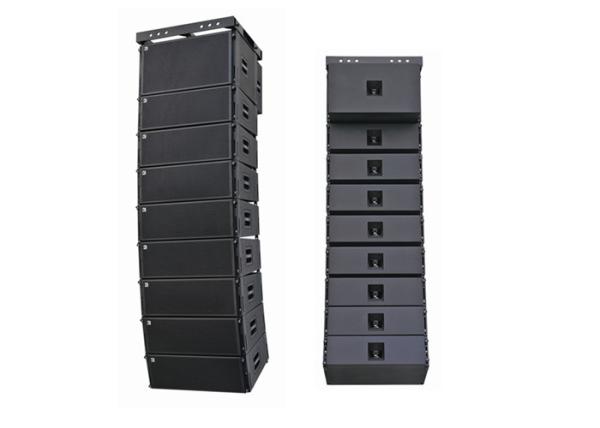

Church Sound System Speaker Line Array Dual 10 Inch Birch Plywood
DESCRIPTION and APPLICATION
W-210A is a line array system which is made of two 10＂neodymium
woofers, two 2＂titanium neodymium compression drivers and
high-performance low-distortion compression driver with innovative
horn design of wave phase philosophy. Wherever low frequency
extension is required,a W-210A will integrate seamlessly with
W-250A line array sub-bass system in a standard configuration. Each
enclosure is equipped with rigging system, allowing flown array to
be constructed rapidly and safely. W-210A is very versatile and
scalable for a wide range of applications in touring performance,
corporate and fixed installation fields.
W-250A is dedicated high performance sub-bass system designed to
augment the low frequency output of the W-210A, W-250A is a
sub-bass enclosure which must be flown with W-210A. So its physical
dimensions are identical to the W-210A and it is equipped with the
same proprietary rigging system. It features with two 15＂woofers
with magnet structure and suspensions engineered for maximum linear
excursion.
| Type | Line array system |
| Line array sub-bass system(W-250A) |
| Frequency Response | 60Hz-20KHz±3dB |
| 40Hz-500Hz±3dB(W-250A) |
| Power handling | LF 800W(RMS)1600W(PEAK) |
| HF 160W(RMS)320W(PEAK) |
| 1200W(RMS)2400W(PEAK)(W-250A) |
| Sensitivity | LF 99dB(1W@1M) |
| HF 108dB(1W@1M) |
| 107dB(1W@1M)(W-250A) |
| Max@S.P.L | LF 127dB(PEAK/1M) |
| HF 127dB(PEAK/1M) |
| 137dB(PEAK/1M)(W-250A) |
ABOUT CVR:
CVR PRO AUDIO is a cutting edge professional audio speaker
manufacturer specializing in designing and manufacturing
professional audio systems,including PA speaker,indoor and outdoor
line array speaker,subwoofer,floor monitor, power amplifier and
speaker management system. We provide these products for indoor and
outdoor events, stadiums, churches, performing arts venues,
theatres,conference rooms, meeting halls, and any space where audio
system are needed.
High-output Mid/High System for Dance Music or live Sound
Designed for a wide range of applications, including:
Houses of worship
Auditoriums
Performing arts venues
Arenas
Mobile and fixed DJ systems
Sound system rental and tour
this Two-way, true line-array Full-Range/Bi-Amp system delivers
extraordinary power handling, clarity, flexibility.it is enable a
J-array configuration and cover long distance with impressive SPL.
The speaker is made with birch plywood finished with scratch &
water resistant paint.
Integrated handles and mechanical hardware for suspension are
included.
