Stage Events Powered Line Array Speakers 10 Inch CVR PRO Audio
ABOUT CVR:
CVR PRO AUDIO is a cutting edge professional audio speaker
manufacturer specializing in designing and manufacturing
professional audio systems,including PA speaker,indoor and outdoor
line array speaker,subwoofer,floor monitor, power amplifier and
speaker management system. We provide these products for indoor and
outdoor events, stadiums, churches, performing arts venues,
theatres,conference rooms, meeting halls, and any space where audio
system are needed.

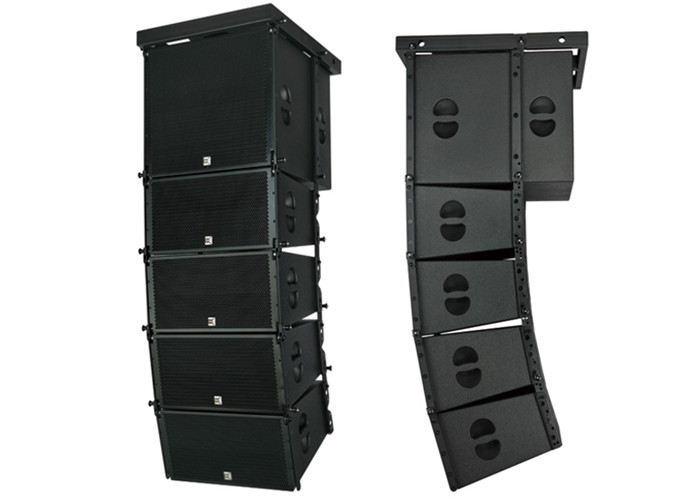

W-110 is a line array system which is made of one 10” neodymium
woofers, two 1.75” titanium neodymium compression drivers and
high-performance low-distortion compression driver with innovative
horn design of waves phase philosophy. Wherever low frequency
extension is required, a W-110 will integrate seamlessly with W-118
or W-118P line array sub-bass system in a standard configuration.
Each enclosure is equipped with rigging system, allowing flown
array to be constructed rapidly and safely. W-110 is very versatile
and scalable for a wide range of applications in touring
performance, corporate and fixed installation fields.
W-118/W-118P is dedicated high performance sub-bass system designed
to augment the low frequency output of the W-110, W-118/W-118P is a
sub-bass enclosure which must be flown with W-110. Its physical
dimensions are identical to the W-110 and it is equipped with the
same proprietary rigging system. It features with a 18” neodymium
woofers with magnet structure and suspensions engineered for
maximum linear excursion. The W-118P with Bluetooth features a
highly efficient power amp module and incorporated DSP.
| Type | Line array system |
| line array sub-bass system(W-118/W-118P) |
| Frequency Response | 65Hz-20KHz±3dB |
| 35Hz-500Hz±3dB(W-118/W-118P) |
| Power handling | LF 400W(RMS)800W(PEAK)
HF 120W(RMS)240W(PEAK) |
| 800W(RMS)1600W(PEAK)(W-118/W-118P) |
| Power amp | 2X600W/4ohm + 1X900W/8ohm (W-118P) |
| Amplifier type | Switching power amp, class D circuit |
| Other functions | Bluetooth,DSP (W-118P) |
| Sensitivity | LF 96dB(1W@1M)
HF 108dB(1W@1M) |
| 109dB(1W@1M)(W-118/W-118P) |
| Max@S.P.L | LF 122dB(PEAK/1M)
HF 125dB(PEAK/1M) |
| 135dB(PEAK/1M)(W-118/W-118P) |
| LF section | 1×10"(260mm) neodymium woofer
75mm(3in)coil |
1×18"(460mm)woofer
100mm(4in)coil (W-118/W-118P) |
| Nominal impedance | 8 ohm/8 ohm (W-118/W-118P) |
| HF section | 2×1.75"compression driver with44mm
titanium diaphragm |
| Nominal impedance | 16 ohm |
Competitive Advantage:
1. High quality speaker drivers, high power handling capability,
good sound quality, flyware easy for operation, beautiful mesh
grille design,highest standards of workmanship and quality control.
2. A good solution for all sizes of indoor/outdoor live event,and
indoors applications like disco,
night club, conference,school auditorium, and places of worship;
3. To avoid damage and scratch during transport,according to
customers’requirement,we can put the items in extra cost flight
cases.
4. Established in 2005, CVR PRO AUDIO has forged a reputation as
one of the nation's most experienced and reliable manufacturer of
pro sound equipment.
