Venta Caliente Portable Line Array Speakers Outdoor Sound System
DESCRIPTION and APPLICATION

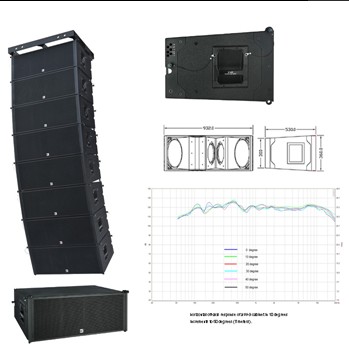

The W-9 line array system which is made of two 12''neodymium
woofers, two high sensitivity 8'' midrange speaker units, two 3''
titanium neodymium compression drivers,the drivers by two
independent plane wave converter, with a innovative directly horn
which generate parallel wave in the front.
W-9 speaker box is trapezoid shaped, hi, mid, low driver units all
with independent horn
output, which improved the speaker sound, maximum lowed the
intervention between the drivers.
The precise positioning position between the driver units which
verified the speaker box very small, but also to ensure the gap
between the cabinet to cabinet minimize. Even several boxes
combination can also with a precise point forming a line array
group, resulting in excellent sound quality, each box is installed
with hanging assembly, can be convenient for hanging, assembling,

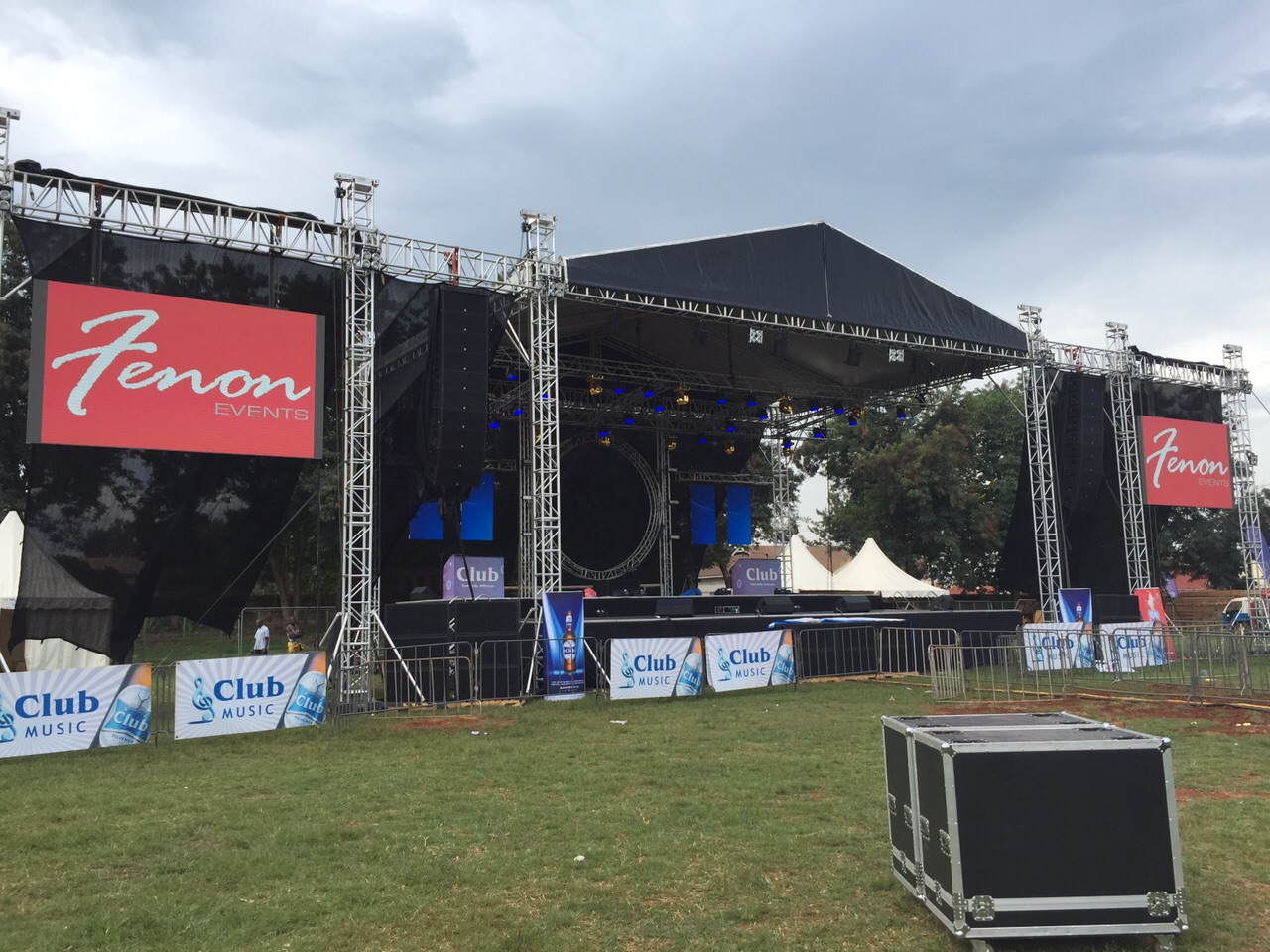

which application W-9 line array performance excellent to large
stadiums, big outdoor concerts, commercial events,bose similar etc.
| Model | W-9 |
| Type | Line array system |
| Frequency Response | 52Hz-20KHz±3dB |
| Power handling | LF 2×600W(RMS)2×1200W(PEAK) |
| MF 500W(RMS)1000W(PEAK) |
| HF 200W(RMS)400W(PEAK) |
| Sensitivity | LF 104dB(1W-1M) |
| MF 108dB(1W-1M) |
| HF 111dB(1W-1M) |
| Max-S.P.L | LF 135dB(PEAK/1M) |
| MF 135dB(PEAK/1M) |
| HF 134dB(PEAK/1M) |
| LF section | 2×12" (310mm)neodymium woofer |
| 75mm(3in) coil |
| Nominal impedance | 8 ohm |
| MF section | 2×8" (210mm)neodymium MF |
| 65mm(2.5in)coil |
| Nominal impedance | 8 ohm |
| HF section | 2×3"neodymium compression driver |
| with 75mm titanium diaphragm |
| Nominal impedance | 16 ohm |
| Output section | 3-channel |
| Dispersion pattern | 110°H×7.5°V |
| Finish | Water-proof,wear-resistant textured black paint |
| Array design | Arrays of less than 3×W-9 will |
| provide poor dispersion control and |
| are neither recommended nor supported |
| Speaker cables | LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-) |
| Rigging system | Please refer to the W-9 user |
| manual before any operation |
| Input connectors | 2×Neutrik NL8 |
| Recommend crossover | LF 60Hz-250Hz |
| MF 250Hz-1.8kHz |
| HF 1.8kHz-20KHz |
| Dimensions | 932×360×530mm(W×H×D) |
| Package dimensions | 1000×430×600mm/0.26cbm |
| Enclosure | Birch Plywood |
| Net weight | 55kg |
| Gross weight | 59kg |
Features
--Detachable front dolly panel
--High fidelity, durability and light weight
--Three-way large format line array module
--15loudspeaker with neodymium magnet
--3loudspeakers with neodymium magnetic ine array
--Captive figging system intergrated in the cabinet design with
good quality birch plywood
Our Unique Advantage
--Small order accept
--Green Paint, low pollution
--Flat aluminum wire for the woofer
--All are textured, durable birch plywood
--Plug is Neutrik, endure repeatedly plug
--Import loudspeaker cone, Good elasticity for woofer
Package&Deliver
--Carton or flycase
--At buyers' option
