3 Way Line Array Church Sound Systems Indoor And Outdoor Crusade
Audio Amplifiers
The W-9 line array system which is made of two 12''neodymium
woofers, two high sensitivity 8'' midrange speaker units, two 3''
titanium neodymium compression drivers, the drivers by two
independent plane wave converter, with a innovative directly horn
which generate parallel wave in the front.
W-9 speaker box is trapezoid shaped, hi, mid, low driver units all
with independent horn output, which improved the speaker sound,
maximum lowed the intervention between the drivers. The precise
positioning position between the driver units which verified the
speaker box very small, but also to ensure the gap between the
cabinet to cabinet minimize. Even several boxes combination can
also with a precise point forming a line array group, resulting in
excellent sound quality, each box is installed with hanging
assembly, can be convenient for hanging, assembling, which

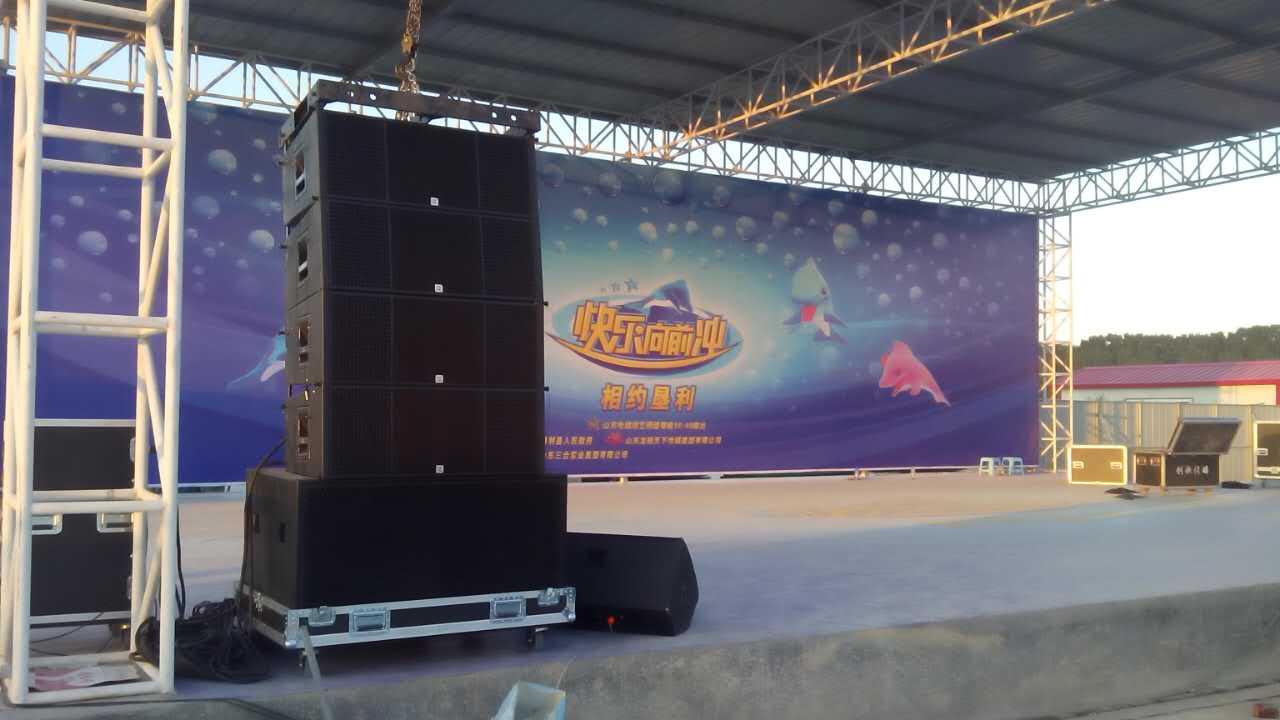

application W-9 line array performance excellent to large stadiums,
big outdoor concerts, commercial events, etc.
| Type | Line array system |
| Frequency Response | 52Hz-20KHz±3dB |
| Power handling | LF 2×600W(RMS)2×1200W(PEAK) |
| MF 500W(RMS)1000W(PEAK) |
| HF 200W(RMS)400W(PEAK) |
| Sensitivity | LF 104dB(1W@1M) |
| MF 108dB(1W@1M) |
| HF 111dB(1W@1M) |
| Max@S.P.L | LF 135dB(PEAK/1M) |
| MF 135dB(PEAK/1M) |
| HF 134dB(PEAK/1M) |
| LF section | 2×12" (310mm)neodymium woofer |
| 75mm(3in) coil |
| Nominal impedance | 8 ohm |
| MF section | 2×8" (210mm)neodymium MF |
| 65mm(2.5in)coil |
| Nominal impedance | 8 ohm |
| HF section | 2×3"neodymium compression driver |
| with 75mm titanium diaphragm |
| Nominal impedance | 16 ohm |
Competitive Advantage:
1.High quality speaker drivers, high power handling capability,
good sound quality, flyware easy for operation, beautiful mesh
grille design,highest standards of workmanship and quality control.
2. A good solution for all sizes of indoor/outdoor live event,and
indoors applications like disco,
night club, conference,school auditorium, and places of worship;
3.To avoid damage and scratch during transport,according to
customers’requirement,we can put the items in extra cost flight
cases.
4.Established in 2005, CVR PRO AUDIO has forged a reputation as one
of the nation's most experienced and reliable manufacturer of pro
sound equipment.
ABOUT CVR:
CVR PRO AUDIO is a cutting edge professional audio speaker
manufacturer specializing in designing and manufacturing
professional audio systems,including PA speaker,indoor and outdoor
line array speaker,subwoofer,floor monitor, power amplifier and
speaker management system. We provide these products for indoor and
outdoor events, stadiums, churches, performing arts venues,
theatres,conference rooms, meeting halls, and any space where audio
system are needed.
CVR PRO AUDIO aims to:
Become your most trusted and reliable manufactory
Provide high quality pro sound equipment at realistic prices
Provide outstanding designs together with delicate finished
Provide meticulous and considerate service for clients
See more at: www.cvr-audio.com
