    Stage Light Audio Sound Systems With Passive Loudspeaker , Passive Speaker Pa System

    Ask Lasest Price
    Brand Name : CVR
    Model Number : CV-1C
    Certification : CE,RoHS
    Price : Negotiation
    Payment Terms : D/A, D/P, L/C, Western Union
    Supply Ability : 1000 Pieces Per Month
    Delivery Time : 5--8 Work Days
    • Product Details
    • Company Profile

    Stage Light Audio Sound Systems With Passive Loudspeaker , Passive Speaker Pa System

    Stage Light Audio Sound Systems With Passive Loudspeaker , Passive Speaker Pa System


    DESCRIPTION and APPLICATION:

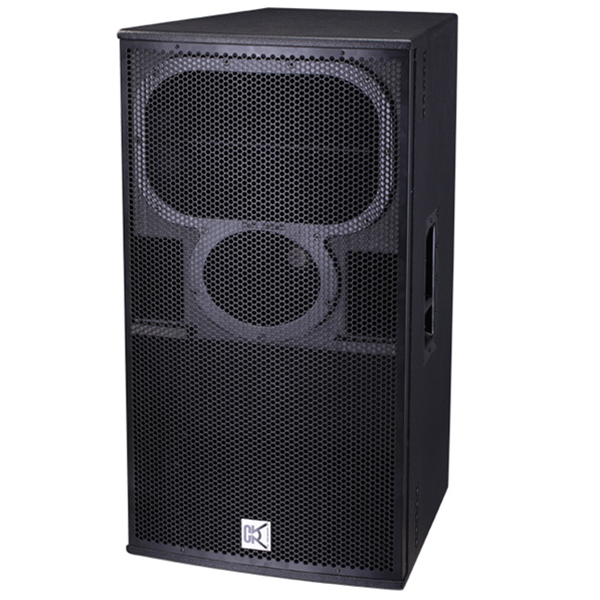

    The ultra-compact CV-1C is a unique,innovative three-way,bi-amps full range system with crossover network built-in both MF/HF sections. CV-1C is equipped with one 15" wave horn loading woofer, one 10"wave horn loading neodymium driver and one 3"titanium compression driver optimally splayed for smooth, powerful, mid-long throw wide coverage. Extremely versatile CV-1C blends pleasing aesthetics, uncompromising technical excellence with ease of installation to provide a high quality loudspeaker system to suit installed sound requirements of varied sizes venues such as bars, night clubs, conference centers, stadiums, arenas, etc.


    ModelCV-1C
    TypeThree-way Bi-amp full range system
    Frequency Response50Hz-18kHz±3dB
    Power handlingLF 600W(RMS)1200W(PEAK)
    MF 300W(RMS)600W(PEAK)
    HF 100W(RMS)200W(PEAK)
    SensitivityLF102dB(1W@1M)
    MF105dB(1W@1M)
    HF111dB(1W@1M)
    Max@S.P.LLF129dB(PEAK/1M)
    MF128dB(PEAK/1M)
    HF131dB(PEAK/1M)
    LF section15"(380mm) woofer 100mm
    (4in)coil
    Nominal impedance8 ohm
    MF section10"(260mm) neodymium MF
    65mm(2.75in)coil
    Nominal impedance8 ohm
    HF section3"compression driver with
    75mm titanium diaphragm
    Nominal impedance8 ohm
    Output section3-channel
    Dispersion pattern60°H×40°V
    Surface finishBlack paint
    Speaker cablesLF 1(+)1(-) MF HF 2(+)2(-)
    Input connectors2×NL4MP speakon
    Recommend crossoverLF 45Hz-200Hz
    MF/HF 200Hz-20kHz
    Dimensions537×980×596mm(W×H×D)
    Package dimensions610×1060×670mm/0.43cbm
    EnclosurePlywood
    Net weight61.5kg
    Gross weight64.5kg


    CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !


    Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.

    Brand Promises


    To get the best goods with least money is not only customers favorites,but also CVR's target.

    • Quality Wood Enlosure: Birch Plywood and Plywood.
    • Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
    • Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
    • CE&RoHS certificate: for all products
    • Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
    • Strong packing: Quality carton boxs with firm belt and flight cases are required.
    • Fast lead time: Sample order in stock and normally within two weeks for bulk production.
    • Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.

    Specifications

    • 1.aluminum line array delay tower
    • 2.heavy load but lightweight
    • 3.durable and stable
    • 4.SGS and CE approved
    • 5.OEM ,ODM

    Package and Delivery:


    1. --Carton or flycase
    2. --At buyers' option
